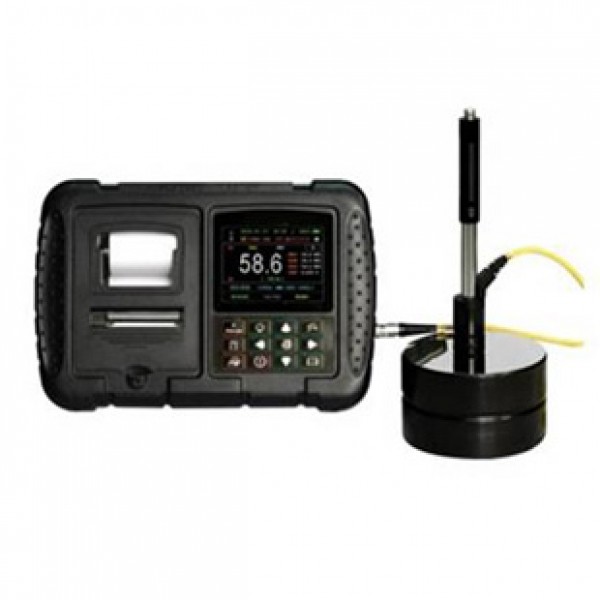

KH-500

Description

Features

●Built In Mini-Printer

●320✕240TFT Color LCD Display

●For Most Metals

●Based On The Hardness HL Value, Conversion To HRB, HRC, HV, HB, S Hardness scale And Tensile Strength

●Impact Device D, DC, DL, C, D+15 And G Available For Special Applications

●Test At Any Angle, Even Upside Down

●Lower And Upper Limit Setting

●High Accuracy +/-0.5%

●USB Interface For Both Recharging And Data Transfer To PC With Software Free

●Memory In 100 Files, 100 Data/Each File

●Works On 4 Standard AA Batteries Or 4 AA Rechargeable Batteries With Working100 Hours Continuously (Without Backlight)

●Auto Shutdown After 2min, 5min And 8min Selection

●Conforming To ASTM A 956

Technical specification

Display LCD	320×240 TFT LCD with LED back-light
Display Functions	Impact direction,Date,Time,Batterypower consumption, Memory reference,Hardness scale,Hardness value, Average value,Max/Min value,Material, Type of impact device connected,Times
Accuracy	Within +/- 0.5% (HLD=800)
Statistics	Average value
Hardness Parameter	HL,HRC,HRB,HV,HB,HS
Measuring Range/Metallic	See the table 1
Impact Device	D (Standard)
Optional Impact Device	DC/D+15/DL/C/G
Impact Device Recognize	Automatically
Memory	200 files with most 1750 average readings depending on the average times
Output	USB interface or Built-in mini-printer
Date and Time	Set date and time
Limitation	Set the upper or lower limitation
LCD Contrast	Adjust the LCD contrast
Auto Shutdown	On or Off
User Defined	Define the measurement conditions
Battery	4 AA rechargeable batteries
Operating Time	Works more than 48 hours continuously without backlight
Operating temperature	-20℃～+50℃
Dimensions	215(H)×140(W)×45(T)mm
Weight	450g (with 4 AA batteries)

Standard Delivery

● Basic Unit ● Small supporting ring

● Impact device D ● Software and Cable

● Test block with HLDvalue

● AC adapter/charger

● Carrying case ● Operation manual

● Cleaning brush ● Certificate
