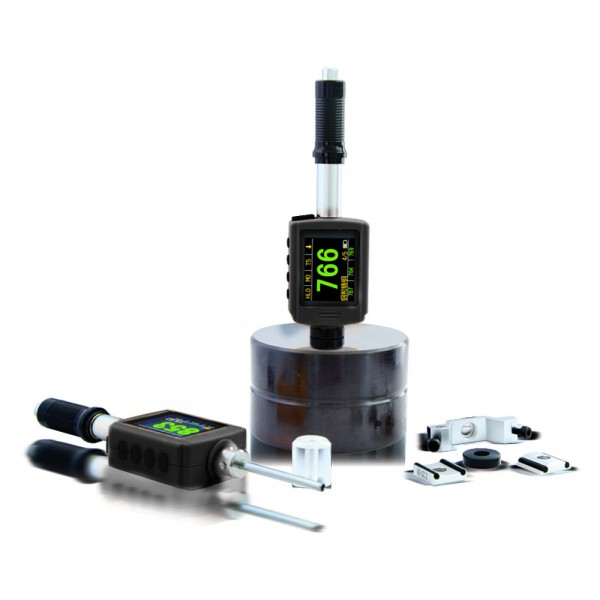

KH-260plus
KH-260plus Technical Specifications
Feature |
| lPen type design, self contained (Impact device and display integrated): no cables. |
lThe unique large-screen OLED color display（1.77-inch OLED Screen）integrated hardness tester in the world |
lDouble coil design for impact device , no A/D conversion error, to get the speed ratio directly with high repeatability |
lInterchangeable D impact device (standard) /DL impact device (optional) can achieve one unit dual use; can be used in the restricted area measurement. |
| lWith battery compartment, battery can be replaced. Using standard AAA Lithum battery. |
lHighly accuracy in any impact direction (360°), automatically identify impact direction and gravity compensation. |
| lEasy Operation, the four soft keys above the screen achieve the various functions. |
Working Principle |
The impact body impacts into the work piece and rebounds back. The rebound and impact velocities are measured at the 1mm point from the work piece in the following way: the integrated permanent magnet will produce directly proportional voltage with the impact velocity. The Leeb hardness values are calculated by the following formula:
|
| Instrument Specifications | |
Display Type | 1.77 inch OLED with resolution 160x128 pixels |
Hardness Scale | HL, HB, HRB, HRC, HV, HS. σb. |
Measuring Range | HLD (200-960) HRC（19.8-68.5） HB（30-651） HV（80-976） HS（26.4-99.5） HRB（13.5-100）.σb.(375-2639) |
Impact Device | D type impact device (Standard); Optional DL type impact device(Only KH260plus) |
Accuracy | ±6HLD (HLD=800) Repeatability ﹤6HLD (HLD=800) |
Measuring direction | 360 degree by manual setting |
Material | Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass, Forged Steel |
Resolution | 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS |
Calibration | Automatic |
Language | English |
Memory: | 1000 groups ,each group include 6 testing result and 1 average value(Only KH260plus) |
Communication | USB port, used for recharging and data transmission（Only KH260plus） |
Software | LmVIEW Software for transmission, storage, and printing (Only KH260plus) |
Power | AAA Polymer lithium battery ,Capacity of 600 MA/H,voltage:3.7 V, warning under low voltage |
Instrument Shut-off | AUTO OFF after 3 minutes of inactivity |
Temperature | -10℃~ +50℃ |
Net Weight | 110g with D type impact device,125g with DL type impact device |
Size | 150mm*46mm*23mm |
Standard | GB/T 17394-1998, ASTM A956 |
Optional Accessaries | ||
| DL Impact Device Connector | Calibration Block (3 kinds of hardness) | Supporting Ring(14 types) |
