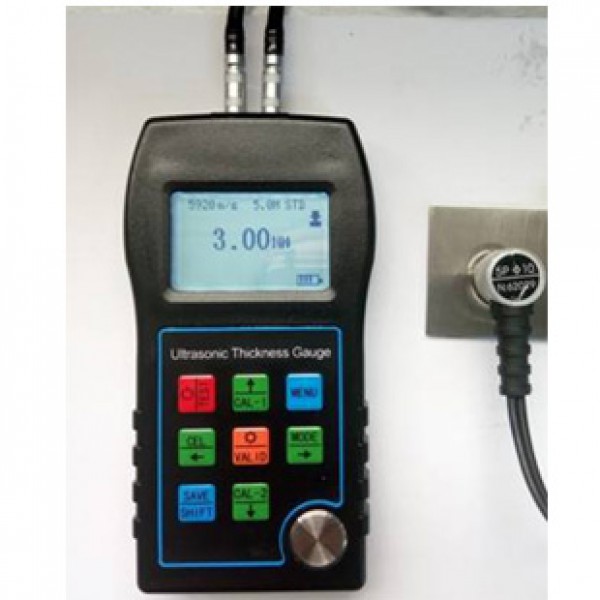

KT-6 / KT-7 ( E-E )
Features:
●Metric-inch free convertible. Display : 0.01mm/0.001inch
●Two modes for through coating measurement: normal test model T-E ,Through coating model E-E ,without removing the coating with KT7
●USB data interface communication, transferring with PC and outputting data with “.txt.”
●Large data storage capacity, Max. Up to 2000 groups. Every group can reach to 99 data.
●7 practical measurement modes available: Standard Mode, Scanning Mode, Difference Mode, Average Mode, Maximum Limitation Alert Mode, High Temperature Mode(should be matched with high temperature probe)
●Probe Zero function, Sound Velocity Calibration function
●Button keyboard designing for convenient shortcut operations for Probe-zero function, One-point and Two-point calibration, as well as numerical adjusting with direction key control.
Product Specification:
Model | KT6 | KT7 |
Measurement Range | 0.65~400mm | |
Measuring Range(Through Coating) | / | 3~20mm |
Material Velocity Range | 509~18699m/s | |
Measuring Accuracy | ±(0.5%H+0.05)mm | |
Display Accuracy | 0.01mm/0.001inch | |
Scanning Rate | 2~20 times/sec | |
Frequency Bandwidths | 1～10MHz | |
Measuring lower limit of pipes | Φ15mm×1.0mm (Probe: 5MHz, Φ10mm) Φ10mm×1.2mm (Probe: 7.5MHz, Φ6mm) | |
Display Mode | 128×64 matrix LED | |
Power supply | 2 AA Alkaline Batteries | |
Operating Time | 280 hours typical battery life, 100 hours continuous with backlight on | |
Operating Temperature Range | -10℃～50℃(Ambient Environment) -10℃～300℃(High Temperature Mode) | |
USB | √ | |
Gauge Size | 136 mm×72 mm×20mm | |
Weight | 176g（Including Batteries） | |
