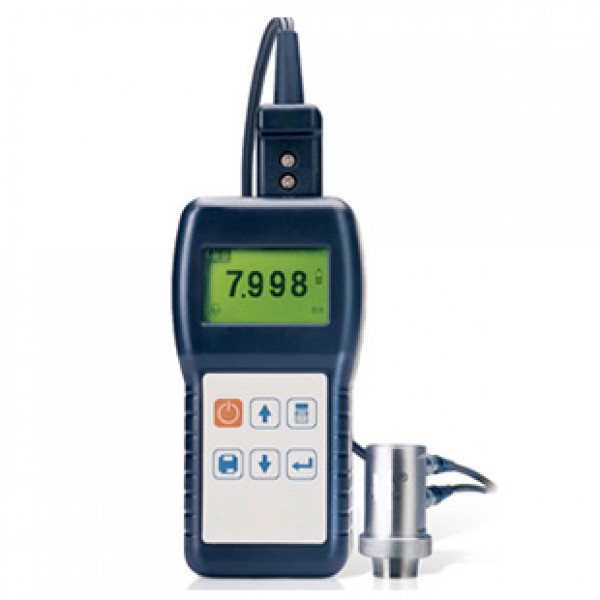

KT-360
Display Resolution: mm 0.001 , 0.01 , 0.1; inch: - 0.001, 0.01
Large LCD backlight: 128 x 64 ( dot - matrix ) Hand held, small dimensions and light - weight
Operating Principle | Pulse echo with dual element transducers |
Units | mm or inch |
Measuring Range | 1.00～300.0mm(0.039～11.81inch) |
Thickness Display Resolution | mm - 0.001, 0.01, 0.1; inch – 0.001, 0.01 |
Measurement Accuracy | 0.5%H+0.08mm(H – Thickness of the tested material) |
Material Velocity Range | 1000 to 9999m/s |
Measuring Range for Steel Pipes | Min. 20 diameter, 2.0mm thickness |
Probe Zero Adjustment | 1 or 2 point calibration option included |
V-path Correction | Automatic |
Operating Mode | Normal mode, minimum capture mode, differential mode, HI / LO thickness limits |
Pulse Repetition Frequency | 4Hz in normal measurement mode;16Hz in minimum capture mode |
Display | Large LCD with backlight; 128×64 dot-matrix |
Dialog Languages | English |
Coupling Status Indicating | Coupling status symbol indicates whether satisfactory acoustic coupling between the transducer and test piece has been achieved |
Battery | Two 5# AA alkaline batteries |
Battery Life | 200 hours (with backlight off) |
Low Battery Indicator | Continuously indicates battery status |
Auto Shut-off | After 3 minutes of non-use |
Data Logger | Up to 2000 readings |
Interface | USB port allows communication with PC (OPTIONAL ) |
Dimensions / weight | 138mm×70mm×34mm / 230g with battery |
