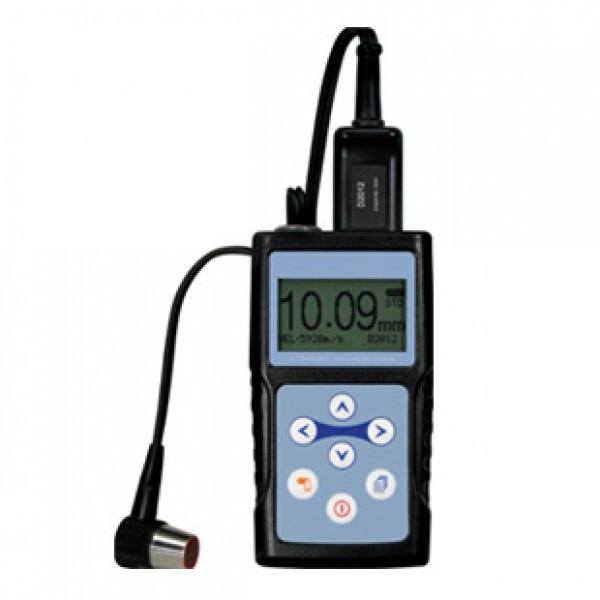

KT-100D/200D

Description

Features

The Through-Coating thickness measurement (E-E)

Pocket Size, easy to operate

Automatic Probe Zero calibration

Automatic probe identification

Measuring Range: E-E: 4-25mm

T-E: 0.65-400mm

(Range depends on probe-material combination)

Memory: 5000 readings with location number (KT-200D)

Data output: USB to PC (KT-200D)

Three measurement modes: T-E, E-E, Scan 9 material velocities are stored for selection,Or input the new velocity manual

Technical Specification

Specification			KT-100D	KT-200D
Measurement mode	Transmit-echo	-Standard measurement: For Normal thickness measurement. -Minimum measurement: For curved surface -Differential measurement: Displays the difference from the actual thickness -measurement and a user entered reference value Average measurement: 2-9 point selectable -Limit measurement: Min. Max setting and alarm	√	√
	Echo-Echo	The metal wall thickness is accurately and quickly measured in spite of surface coating	√	√
	Scan	Thickness value at 10 measurements per second while also display actual thickness (Ideal for high temp. thickness readings)	√	√
Probe identify	Auto		√	√
Probe zero	Auto at power up and continuously during the measurement		√	√
Gain adjust	Auto gain adjustment Manual gain adjustment, low, standard and high		√	√
