Products

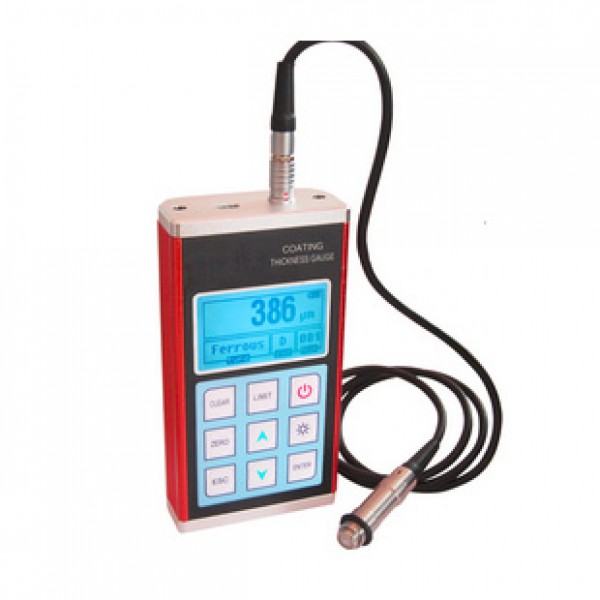

KC-300

KC-300
Description

*Various probes optional, probe auto matching.

* Two measuring modes are available: continuing measuring mode(CONTINUE)and single measuring mode(SINGLE)

* 2 methods can be used to calibrate the gauge ( zero calibration, two-point      calibration ) ,and the system error of the probe can be corrected by use of basic calibrating method .

*Durable ruby probe, more wear and precise.

*Full metal shell design, sturdy, portable, high reliability.

*Alarm function when overrun the settable limiting range.

*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] for higher accuracy.

*Large storage, easy to delete single or multiple saved values..

*PC software optional, convenient the data transmission, analysis, printing etc.


Measuring range

0-1250μm, depends on probes, MAX 10mm for the   probe F10.

Working principle

Magnetic & Eddy

Substrate

FE / NFE base

Resolution

0.1μm

Display

128x64 LCD with backlight

Accuracy

±2%H+1um   Note: H is thickness   reading

Memory

5 files x 100 values

Unit switch

Metric (μm) Imperial (mil)

Working temperature

Operation Temp. : -10~50°C      Storage Temp. :-30~70°C

Power

AA battery 2pcs

Weight / Size

340g / 115*67*31mm
