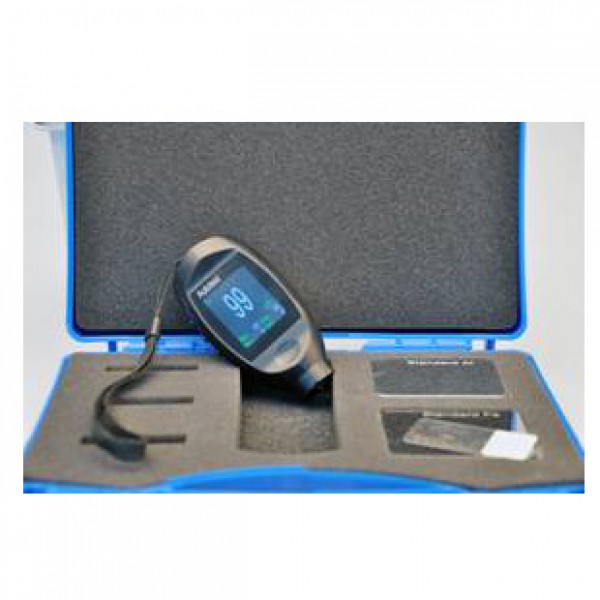

KC-160

KC-160
Description


-Auto recognition of the substrate material (Fe or NFe)
   -Large and clear TFT Screen (1.8’ TFT 262K)
- Power supply:2 x1.5v AAA
- Auto power off

Technical Specification


KC160

Operating principle

magnetic induction/eddy current (F/NF)

Fe & NFe 2 in 1

Measuring Range

0~1250μm,   0~49 mils

Resolution

0.1μm

Accuracy

±((1-3)%H+2um)

Min.measuring area

2*2   mm

Minimum curvature radius convex

2mm

Minimum curvature radius concave

25mm

Minimum thickness of substrate

0.5mm

Battery indicator

low battery indicator

Metric/imperial

Power supply

Display

AVE,MAX,MIN,DEV

Measurement

Single

Operating temperature

040

Power supply

2 pcs. AAA Battery

Dimensions

90×50×25mm

Weight

41g


               image006.jpg                     image008.jpg
