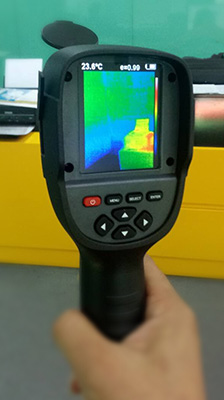

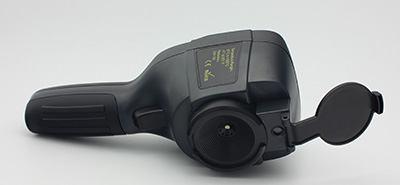

Hand held Thermal Imaging Camera
Description
Model | ATB8 |
Display | 3.2" Color display |
Infrared resolution | 220×160 IR SENSOR |
Total Pixels | 35200 |
Field of view | 35°x 26° |
Measuring model | Infrared focal plane measuring temperature |
Thermal sensitivity | 0.08ºC |
Emissivity | Adjustable 0.1~1.0 |
Temperature measurement range | -20ºC ~300ºC / -4ºF~ 572ºF |
Accuracy | ±2% or ±2.0ºC |
Wavelength range | 8~14um |
Image Frequency | 9HZ |
Focus model | Fixed focus |
Color palettes | Iron color , rainbow ,black and white |
Set control | Unit Adjustment / language / Date Time Format / automatic shutdown |
Image storage | 8 G |
Humidity | ≤ 90% RH |
Operating Environment | 0 to 50°C |
Emissivity | 0.1 – 1.0 adjustable |
Batteries | 3.7 V rechargeable Li-ion polymer Battery |
Weight | 380 g |
Size /weight | 225 x 92 x 90 mm |
