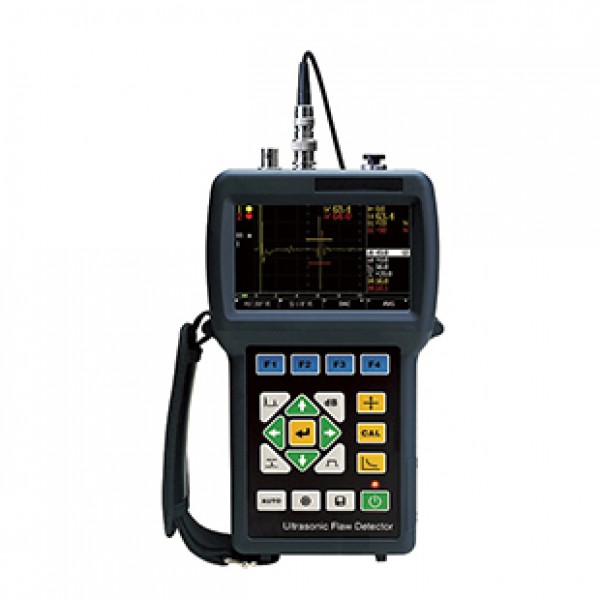

KFD-55
Water-proof Dust-proof Lightweight Hi-Bright Battery Lif
IP54 only 0.9kg 8+hours
• Curved surface correction
• DGS /AVG /DAC Curve
• RF Display Mode
• R-scan (1 hour )
• AWS D1.1 Evaluation
• Auto-calibration
• API 5UE evaluation
• 1000 Frames of A-scan Storage
► 640MHz sampling frequency , 800×480 full WVGA resolution assure quick and accurate display and analysis on defect signals .
► High signal-to-noise ratio, special composite materials, highly-attenuated or thick work-pieces.
► 4.3 inches display, set-in battery and charger, but only 0.9kg in weight
► Standard of IP54 certification and compatible with EN 12668:2000 standard.
► With full WVGA TFT display at industrial level, offers fine images at different angles.
► Auto-calibration function including fast calibrating material velocity, probe delay and probe angle.
► DAC: Easy to make, correct, store and recall DAC.
► USB port for software updating, data transferring and printing and access to devises such as mouse, keyboard and U-disk.
| Transmitter Pulse | -Ve Square Wave Pulse,Transmitter Pulse Voltage:25～250V, continuously adjustable with 25V increments |
Test Modes | Pulse echo and dual transmission |
Damping | 400,80 Ohm |
Frequency | Broadband/narrowband optional.Broadband:0.5～20MHz. Narrowband:1.5～3MHz |
Gain | 0.0～110.0dB.Steps as 0.1/1.0/2.0/6.0dB |
Material Velocity | 1000～15000m/s continuously adjustable.Set-in 30 common material velocities selectable |
Test Range | 0.0～10000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm increments |
Rectification | Positive halfwave, negative halfwave, full wave, RF |
Alarm | Real-time alarm signal, positive and negative thresholds, minimum depth, DAC alarm optional |
Measuring Mode：Select front edge or peak of pulse wave in gate | |
Display | 4.3" industrial-leveled TFT color LCD with 800×480 WVGA resolution |
Pulse Shift | -7.5～3000μs |
Probe Zero | 0～999.9μs |
Pulse Repetition Frequency | 25～800Hz, auto adjustment mode |
Vertical Linearity Accuracy | ≤3% |
Horizontal Linearity Accuracy | ≤0.2% |
Surplus Sensitivity | ≥60dB(200Ф2 flat bottom hole) |
Resolutions | ≥36dB(5P14) |
Dynamic Range | ≥32dB |
Reject | (0～90)% |
Electric Noise Level | <10% |
Interface | Q9 transducer cable connectors |
USB HOST | |
Power Supply | Large-capacity lithium battery without memory effect; More than 8 hours |
Built-in charger, AC Mains 220V | |
Dust/Splash /Water-proof | meets IP54 standard |
Standards | EN12668-1 compliance |
Conform to JB/T 10061-1999 standard | |
Environmental Temperature | -30～50℃ |
Relative Humidity | 20%～95%RH |
Weight | 0.9Kg(with battery and built-in charger) |
Dimension | TOP：215mm×126mm×53mm / bottom：215mm×104mm×42mm |
