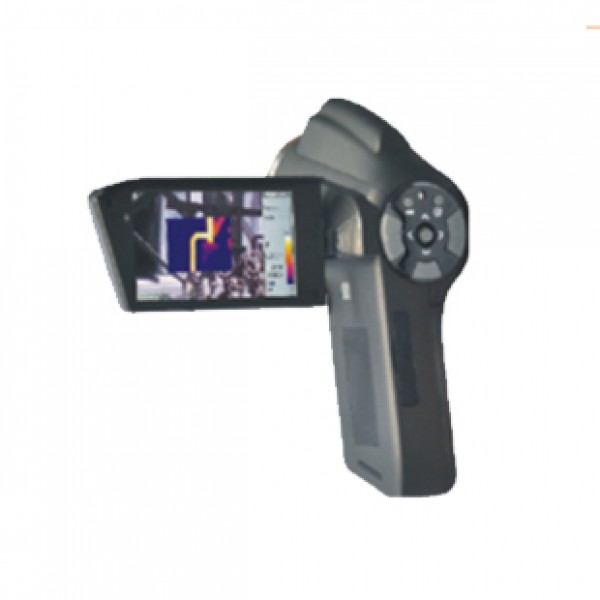

AT15 & AT35

Detector Data

Detector Type

Uncooled FPA,160×120 pixels

Uncooled FPA, 384×288 pixels

Pixel pitch

                        25μm

Spectral range

                        8~14μm

IFOV/Mini Focus

21°×16°/0.15m  (standard lens)

21°×16°/0.4m  (standard lens)

42°×32°/0.1m (wide lens,optional)

38°×28°/0.3m (wide lens,optional)

10°×8°/1m (telephoto lens,optional)

11°×8.5°/1.2m(telephoto lens,optional)

Spatial resolution(IFOV)

25μm

Spectral range

8~14μm

IFOV/Mini Focus

21°×16°/0.15m  (standard lens)

21°×16°/0.4m  (standard lens)

42°×32°/0.1m (wide lens,optional)

38°×28°/0.3m (wide lens,optional)

10°×8°/1m (telephoto lens,optional)

11°×8.5°/1.2m(telephoto lens,optional)

Spatial resolution(IFOV)

2.3mrad

1.2mrad

Sensitivity/NETD

<60mk @ +30

<80mk @ +30

Image   Presentation

Image Display

3.2” 270° tiltable LCD

Image modes

Thermal image, visual image,   thermal fusion,picture-in-picture, thumbnail gallery

Thermal fusion

IR   image shown above, below or within temp interval on visual image

Picture in Picture

Resizable and movable IR area on   visual image

Frequency

50Hz(PAL)/60Hz(NTSC)

Focus

Auto/Motor

Digital Zoom

1-4x Continous

1-8x Continous

Visual camera

3.0 mega pixel

Spotlight

10cd/m²

Measurement

Temperature range

-20     ~ 250   (Industrial)

-20     ~ 600   (optional A)

-20     ~ 1200  (optional B)

Temperature Measurement accuracy

±2 or ±2% of reading

Spotmeter

4 adjustable spots

Area

3 adjustable boxes with   max./min./average

Line profile

Horizontal/vertical

Isotherms analysis

Detect high/low temperature/interval

Dew point alarm

No

Hot/cold spot Auto detection

Max/Min/Average temp

Emissivity correction

Variable from 0.01~1.0

Alarm

Voice and Color

Multiple language menu

10 languages (English,French,Italian,German,Spanish,Portuguese,   Russian, Korean, Japanese,  Chinese)

Set-up Commands

Real-time Video

Transfer via USB

Color palettes

Iron, anti-iron,feather red,black   hot,white hot, medical

Set-up commands

Date/time, temperature units C/F/K,   language, scale

Measuring Calibration

Automatic, based on inputs

Image Storage

Storage type

4G SD card, Building-in flash

Storage capacity

Up to 700 images in built-in flash card

Up to 500 images in built-in flash card

Up to 11200 images in 4G SD card

Up to 8000 images in 4G SD card

Storage format

Standard JPEG, including measurement   data

Periodic image storage

user definited, 7 seconds at least

Laser Pointer

Grade/Type

Class II, 1mW/635nm red

Power System

Battery

Li-ion, ≥3 hours operating time

Charging system

In camera or AC adapter

AC supply

110    240V AC  50/60Hz  5V DC output

Voltage

5V±5% DC

Power management

Automatic shutdown(user selectable)

Environmental   Data

Operating temperature range

-20+50

Storage temperature range

-40+70

Humidity

≤90%    non-condensation

IP level

IP54

Physical Data

Weight , size ( LxWxH)

390g , 128×62×154mm

Data Communication   Interfaces

USB

Data transfer to and from PC

Video output

PAL/NTSC

Audio output

 Yes

Packing

Standard

Thermal imaging camera with Standard   lens, 2 Batteries, Battery charger, USB cable, SD card, SD card reader,  CD-ROM   software   and user manual), Adapter, Warranty card, Calibration certificate

Optional Accessories

Infrared lens, Li-ion battery
